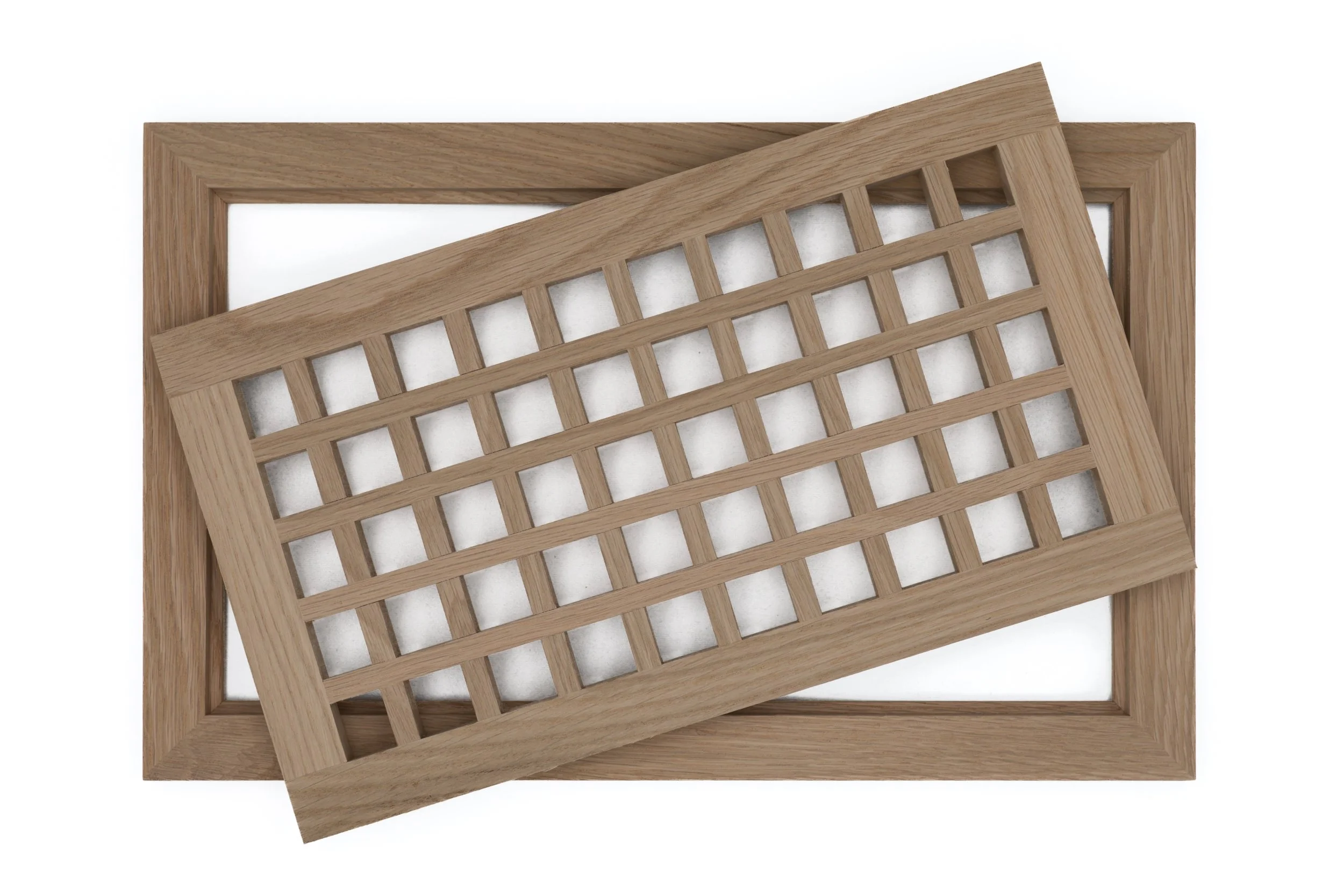

Egg Crate: Flush With Frame
| Duct Opening | Overall Dimensions | |
|---|---|---|
| Flush With 90° Corners | Flush With 45° Corners | |
| 6 x 10 | 10 x 14 | 10 x 14 |
| 6 x 12 | 10 x 16 | 10 x 16 |
| 6 x 14 | 10 x 18 | 10 x 18 |
| 6 x 18 | 10 x 22 | 10 x 22 |
| 4 x 32 | 8 x 36 | 8 x 36 |
| 14 x 32 | 18 x 36 | 18 x 36 |
Popular sizes shown above.

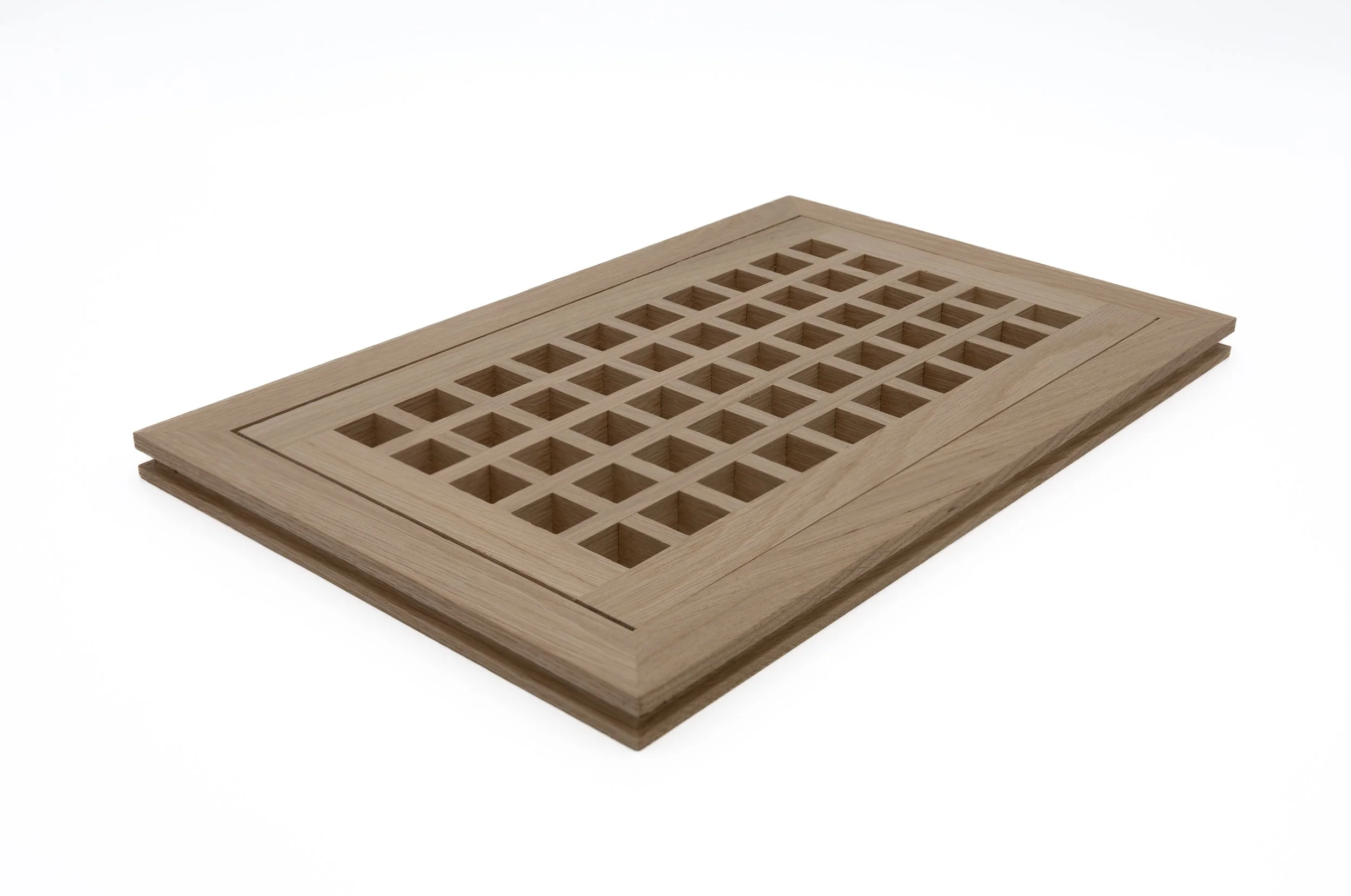

Egg Crate: Flush No Frame
| Duct Opening | Overall Dimensions |
|---|---|
| Flush No Frame | |
| 6 x 10 | 8 x 12 |
| 6 x 12 | 8 x 14 |
| 6 x 14 | 8 x 16 |
| 6 x 18 | 8 x 20 |
| 4 x 32 | 6 x 34 |
| 14 x 32 | 16 x 34 |
Popular sizes shown above.

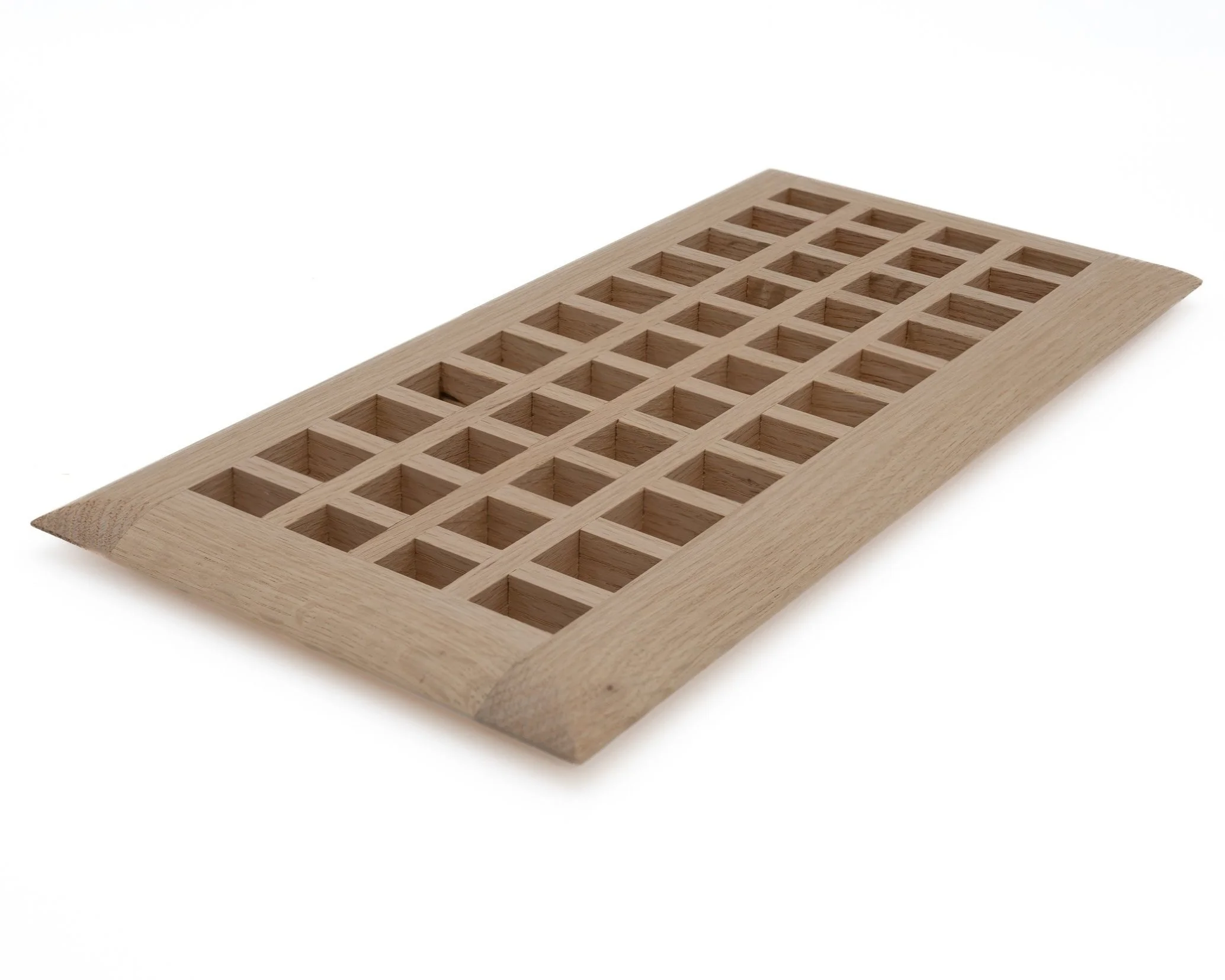

Egg Crate: Insert
| Duct Opening | Overall Dimensions |
|---|---|
| Insert | |
| 6 x 10 | 7-1/2 x 11-1/2 |
| 6 x 12 | 7-1/2 x 13-1/2 |
| 6 x 14 | 7-1/2 x 15-1/2 |
| 6 x 18 | 7-1/2 x 19-1/2 |
| 4 x 32 | 5-1/2 x 33-1/2 |
| 14 x 32 | 15-1/2 x 33-1/2 |
Popular sizes shown above.
